1914 Cadillac Brake Drum
$1,237.50Spun steel brake drum for use on all models of 1914 Cadillac. Produced per original specifications. Note: This item ships separately from other items in your order.
Showing 1–9 of 233 results
-
-
Delage D8-85 Brake Drum
$1,210.00Exact reproduction of cast iron brake drum for 1934 – 1935 Delage D8-85. ID is undersized by .010 to allow for flexibility in shoe fitting. Fin detail is faithfully reproduced. Material: Cast iron Finish: Natural OD: 15.250 ID: 13.990 Shoe contact depth: 2.325 Bolt circle: 5.514 Bolt thru hole ID: .728 Hub ID: 4.015 This…
-
Braggs Kliesrath Booster Top ( 5 1/2 O.D. )
$815.00Braggs Kliesrath Booster Top ( 5 1/2 O.D. ) Material: Stainless/Bronze Finish: Natural Shaft Thru Hole: 3/4 Canister O.D. Dimension: 5 1/2″ *Comes With Felt Shaft Seal
-
Bragg Kliesrath Brake Booster Shaft, 1934 Chrysler
$620.00Bragg Kliesrath brake booster shaft for use on 1934 Chrysler Air Flow and other cars using a 13 15/64 long internal valve brake booster shaft. Only one available. Material: 4130 Steel Finish: Cadmium Thread: 3/4-24 9/16 Ground ID on one end Thru ID: 1/2 OD: 3/4 Length: 13 15/64 Three Slots: .062 wide thru to…
-
Hispano Suiza J12 Water Pump Shaft – RH Thread
$385.00Ready to install water pump shaft (RH Thread) for Hispano Suiza J-12. The J-12 used two water pumps – we have shafts for each side. Material: Steel Thread: M18 x 2.5 Thread length: 16mm OAL: 107mm Shoulder OD: 25mm, 4mm long Shaft OD: 14mm Shaft length including spine: 82mm Number of splines: 16
-

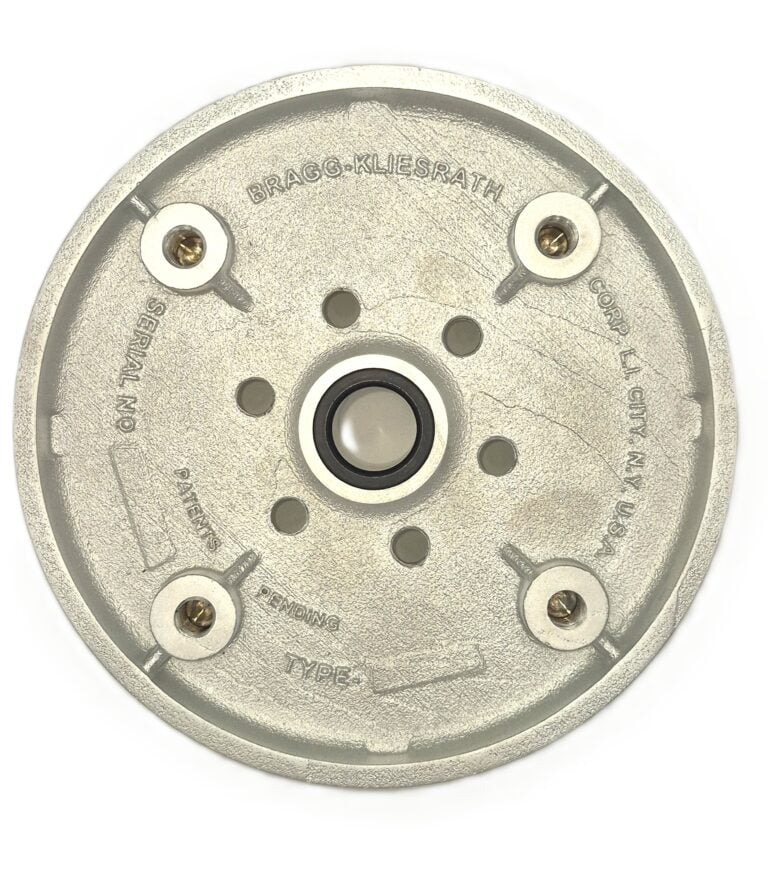

Bragg Kliesrath Brake Canister Cover
$385.00Cadmium plated bronze casting of an original Bragg Kliesrath brake canister cover. Fully machined to fit 6″ Dia. boosters. Superb detail & durability.
-
Lockheed Brake Master Cylinder Brake Shaft
$375.00Lockheed box type master cylinder cross shaft with splines for internal and external levers. These shafts are ground to standard size to fit the housing bore. The standard bore is .875 on the small end and 1.000 on the large end. Material: Hardened Stainless Steel Finish: Natural OD: 1.000 Length: 5.890
-
Braggs Kliesrath Brake Booster Shaft (11 37/64 OAL)
$350.00Braggs Kliesrath Brake Booster Shaft (11 37/64 OAL) Material: Dom Steel Tubing Thread: 3/4-24 (Both Ends) Finish: Cadmium OAL: 11 37/64 Thru Hole: 1/2 I.D. 37/64 Applications: Braggs Kliesrath brake boosters Packard #237016 Model 1506, 1507, 1508, 1607,1608, 1707, 1708
-
Bragg Kliesrath Clutch Booster Shaft (12 11/32″ OAL)
$350.00Bragg Kliesrath Clutch Booster Shaft Material: Dom Steel Tubing Thread: 3/4-24 (both ends) Finish: Cadmium Plated OAL: 12 11/32″ I.D. 37/64 Thru Hole: 1/2 Applications: Bragg Kliesrath brake boosters Packard part #237017
