Showing 1–9 of 15 results
Duesenberg Model J steering gear lighting switch and cover assembly. Also comes with a new Steering gear lighting switch terminal plate (J-6574-S8) Cadmium plated. Exactly like original switch in function and appearance.
Twilite fluted lens for Duesenberg Model J headlights. 11 1/2″ Diameter and made from heavy duty glass.
Duesenberg Model J fender to headlamp bolt clip. Material: 8620 Steel Finish: Natural OAL: 2.850 OAW: 2.343 Height: 1.296 Holes: .500, centers 1.950 and 1.500
Duesenberg Model J headlamp wiring harness assembly.
Duesenberg Model J headlamp mount casting.
Fibre glass plate with phosphor bronze blade spring. Fits under the headlight switch cover and holds the terminal ends into the switch sockets. Used on headlight switches on Duesenberg as well as Cadillac and LaSalle from 1927-1931. Measures 1/16 thick, plate is 2 1/16 OD, spring is 2 1/4 OD.

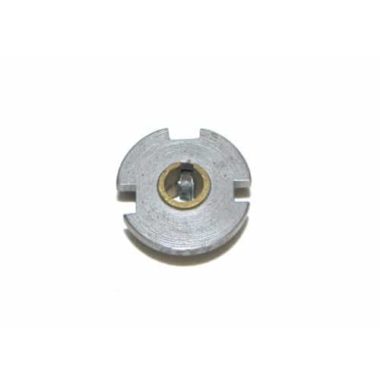

Duesenberg Model J headlight switch center.
Duesenberg Model J headlamp bracket terminal cover. Material: 360 Brass Finish: Natural DIA: 1 47/64 Screw hole DIA: 11/32 Countersunk Screw hole spacing: 1.312 Edge thickness: .109
Duesenberg Model J headlamp lens retaining wire. Material: Spring steel Finish: Natural Length: 1.262 Width: .500 Height: .234 Wire: .045 Gap: .200
